Industrial 3D Scanning: 5 Critical Ways to De-Risk Your Project
In the world of manufacturing and plant management, measurements matter. A discrepancy of just a few inches in a facility layout can lead to disastrous equipment clashes, costly rework, and extended downtime. This is why industrial 3d scanning has become an indispensable tool for modern engineering. Instead of relying on outdated blueprints or manual tape measurements, scanning technology captures the exact reality of your facility with millimeter-level precision.
Whether you are planning a major retrofit or simply need to document existing assets, industrial 3d scanning eliminates the guesswork. In this article, we explore the five most critical use cases for this technology and how it can save your next project from costly errors.
Table of Contents
What is Industrial 3D Scanning?

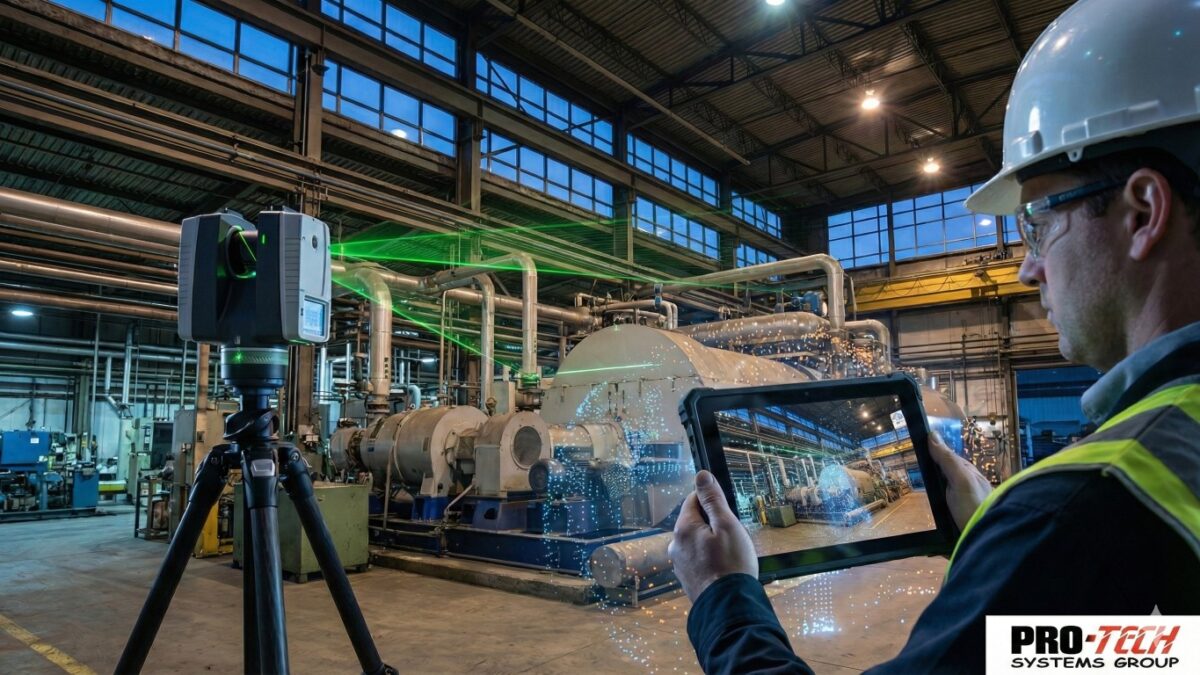

Before diving into the applications, it is important to understand the technology. Industrial 3d scanning (often using LiDAR or laser technology) works by capturing millions of data points from a physical environment to create a “point cloud.” This data is then processed to create a dimensionally accurate 3D digital model of your plant.
According to the National Institute of Standards and Technology (NIST), these advanced capture methods are revolutionizing how we verify and document complex infrastructure, providing a level of accuracy that manual methods simply cannot match.
5 Critical Use Cases for Industrial 3D Scanning
1. Creating Accurate “As-Built” Documentation
One of the most common problems in older facilities is that the original blueprints rarely match the current reality. Over decades, pipes are rerouted, machines are moved, and walls are added, often without updating the master drawings. Industrial 3d scanning solves this by capturing the “as-built” state of the facility. This provides your engineering team with a perfect, up-to-date digital reference, ensuring that any future designs are based on reality, not outdated paper drawings.
2. Clash Detection for New Equipment Install
Installing a new boiler, conveyor system, or robotic arm is a massive investment. The nightmare scenario is lowering the new equipment into place only to find it collides with an existing structural beam or pipe that wasn’t on the drawing. By overlaying the 3D model of your new equipment into the point cloud data from your industrial 3d scanning, we can perform “clash detection” virtually. We catch these interferences on the computer screen months before installation begins, saving thousands of dollars in emergency field modifications.
3. Reverse Engineering Legacy Parts
When a critical machine part fails and the manufacturer is out of business, you can be left with a major problem. High-resolution scanning can capture the geometry of a broken or worn part with incredible precision. This data can be used to generate a CAD model for machining or 3D printing a replacement. This capability is a key component of our rapid repair and maintenance strategy, getting your line back up and running faster.
4. Drone 3D Scanning for Safety Inspections
Some areas of your plant are simply too dangerous or difficult for humans to access easily, such as high smokestacks, tank roofs, or flare tips. By utilizing drones equipped with scanners, we can perform industrial 3d scanning remotely. This allows you to inspect structural integrity and identify corrosion or damage without the need for scaffolding or putting personnel at risk. This approach aligns with our commitment to safety in all our field services.
5. The Foundation for Your Digital Twin
Perhaps the most forward-looking application is using scan data as the foundation for a Digital Twin. By combining the visual geometry from the scan with live operational data, you create a dynamic virtual replica of your plant. This allows for immersive operator training and advanced asset management. It is the first step in our comprehensive Digital Twin & 3D Scanning service offering.
Partner with Pro-Tech for Precision Scanning
At Pro-Tech Systems Group, we don’t just capture data; we turn it into actionable engineering insights. Our team uses state-of-the-art industrial 3d scanning technology, including Matterport, to de-risk your projects and modernize your facility.
Stop relying on outdated drawings. Contact Pro-Tech today to schedule a high-fidelity scan of your facility.
